More Than Meets The Eye

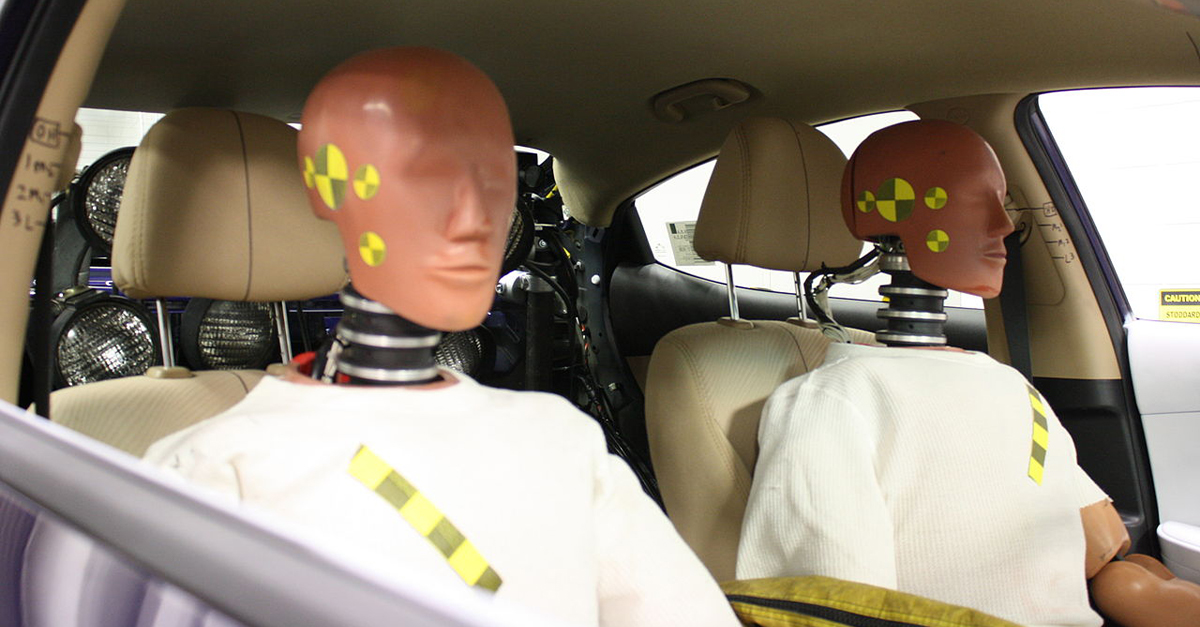

Crash test dummies may not look like much, but they represent some of the most advanced tools in automotive safety. Behind every crash test is several decades of science, engineering, and biology, all encapsulated in these human-like models. These intrepid dummies are the tools that help make vehicles safer for real humans in real-world collisions.
The Early Days Of Vehicle Safety Testing
Before the advent of crash test dummies, automotive safety tests had to rely on cadavers, animals, or volunteers. These methods were about as pleasant as you can imagine. They also brought up all kinds of ethical issues along with providing inconsistent results. The total lack of consistency in early testing made it difficult for engineers to advance a serious program to protect all passengers effectively.
Di VenutiSalem State Archives from Salem, Massachusetts, Wikimedia Commons
The Crash Test Dummy Is Born

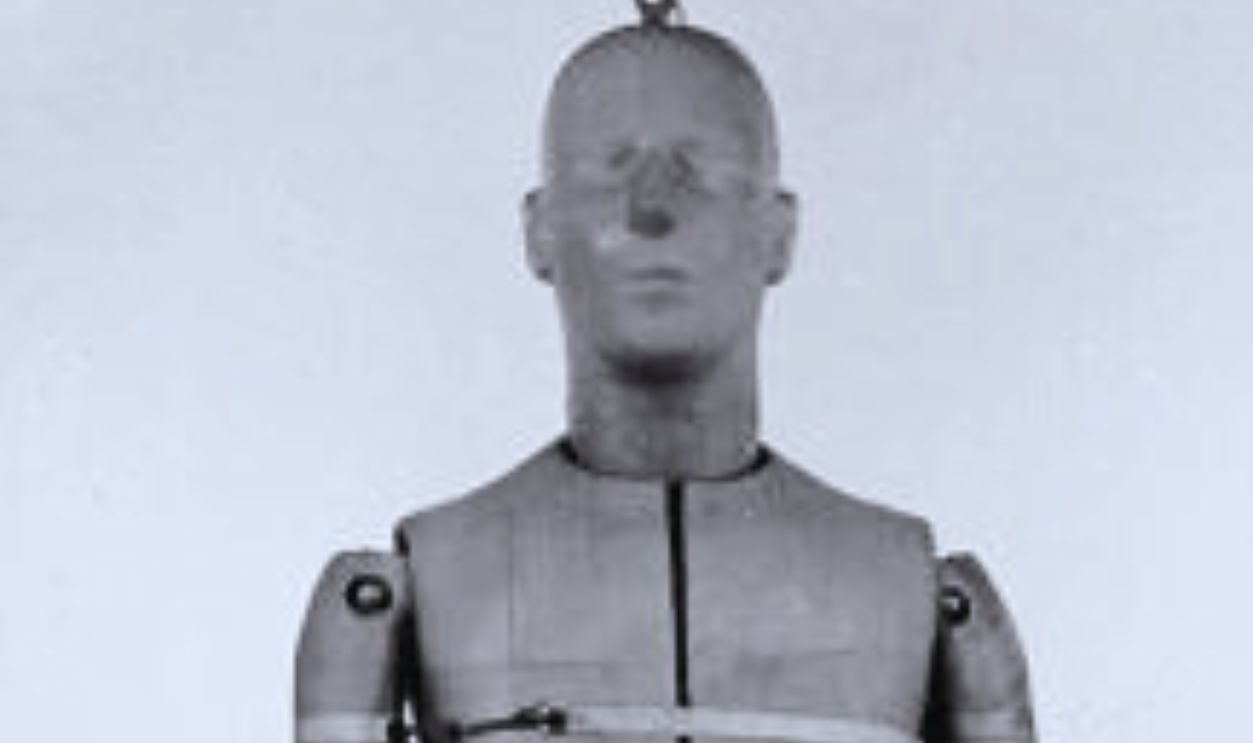

The first true crash test dummy, Sierra Sam, was assembled in the late 1940s. Created by Samuel Alderson, Sierra Sam was initially intended to test aircraft ejection seats. The dummy proved its usefulness and was soon adapted for the automotive industry, in a major leap forward in automotive safety research.
Advances Continue In The 60s

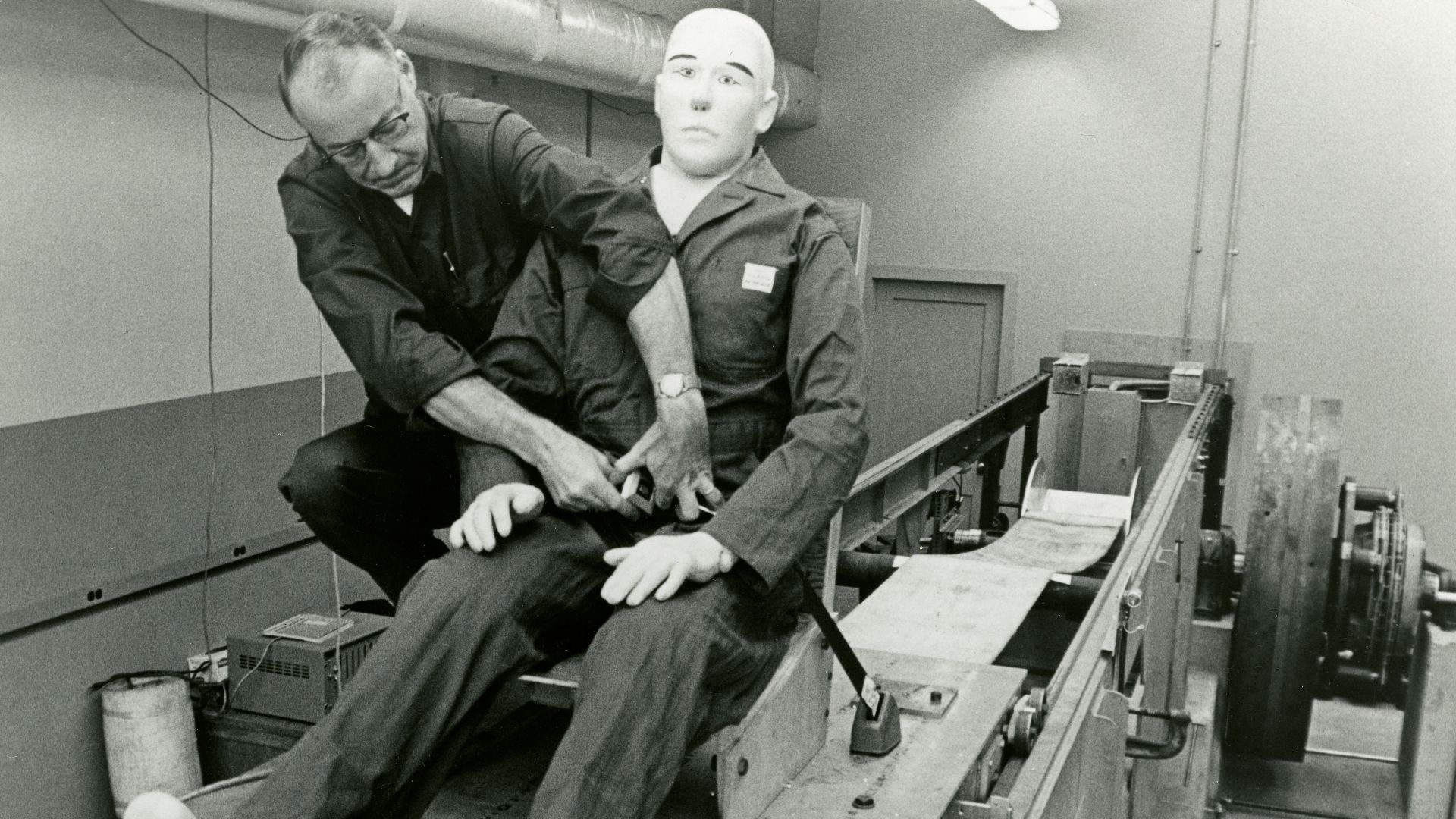

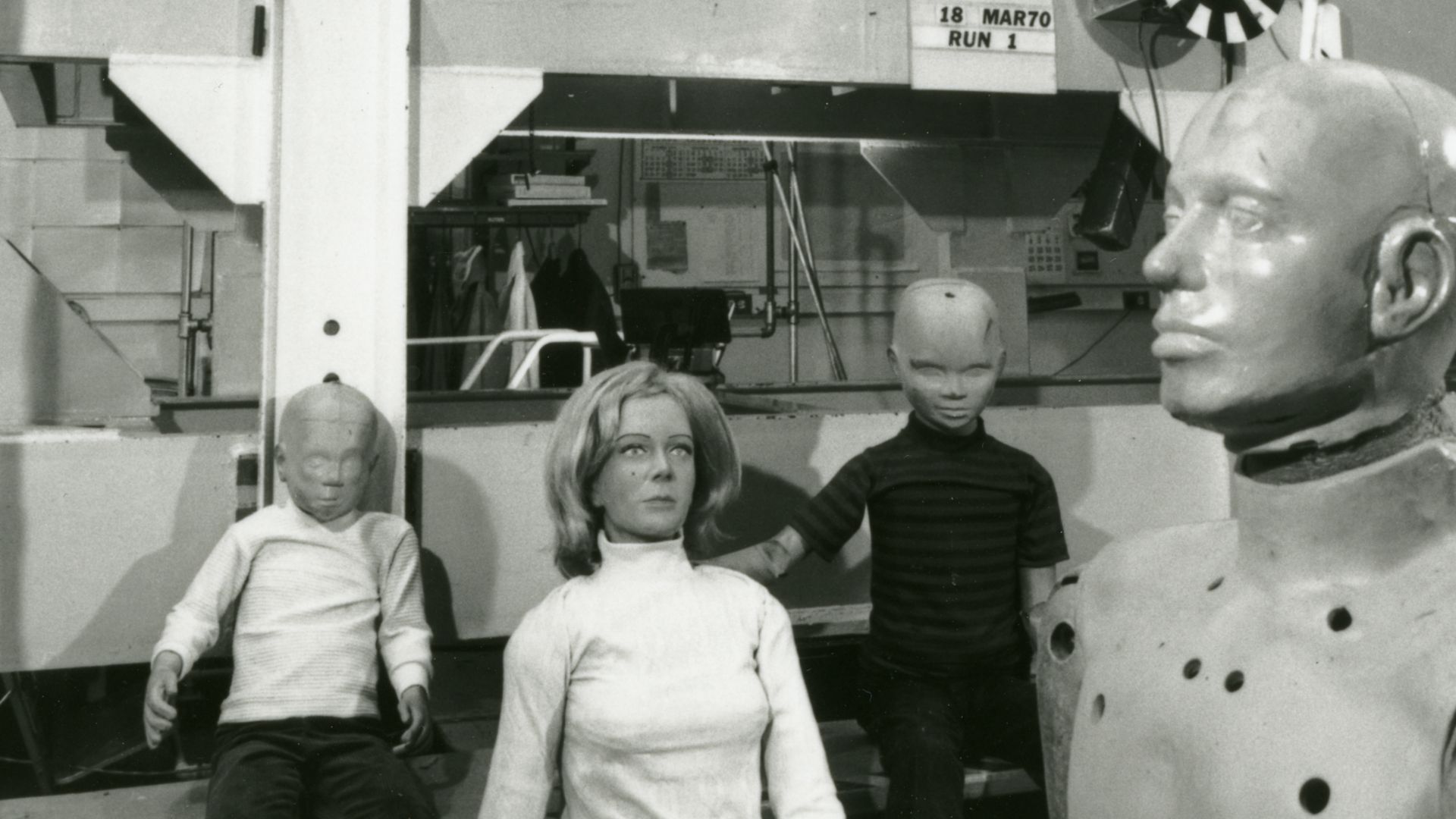

The 60s marked a major turning point in crash test dummy technology, with the creation of more human-like dummies such as VIP-50. These models were able to simulate human responses more accurately, giving researchers more reliable crash data. As automotive safety regulations started to evolve and expand, so did the demand for ever-more advanced dummies.
National Institute of Standards and Technology, Wikimedia Commons
A New Breed Of Dummy: The Hybrid III

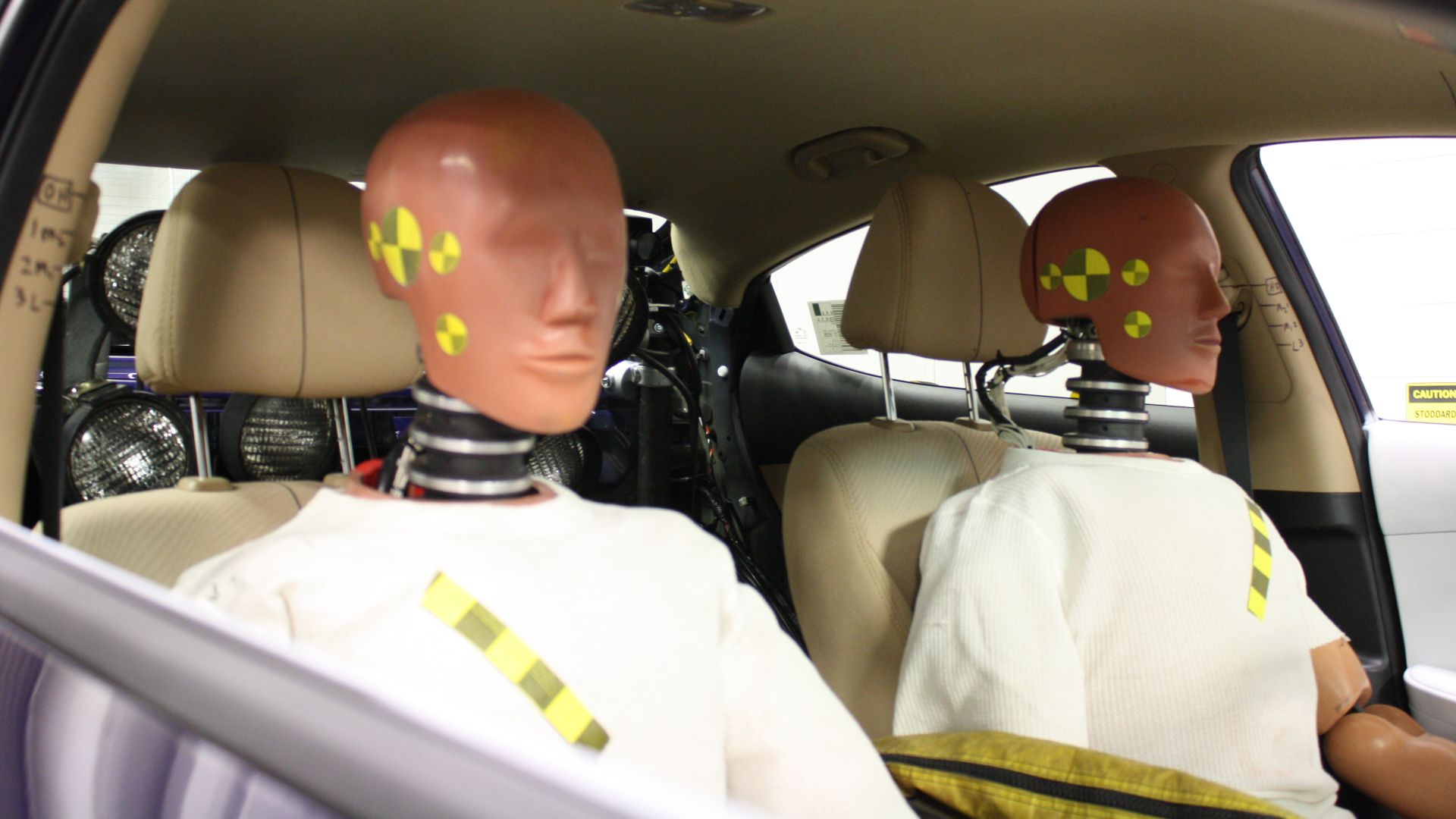

In the 70s, the Hybrid series of crash test dummies emerged. This included the famous Hybrid III, which became the gold standard for head-on collision testing. Its sensors and human-like proportions produced a steady stream of consistent, repeatable data across a vast array of crash scenarios.
MGA Research Corporation, NHTSA, Alpha Technology Associates Inc., Wikimedia Commons

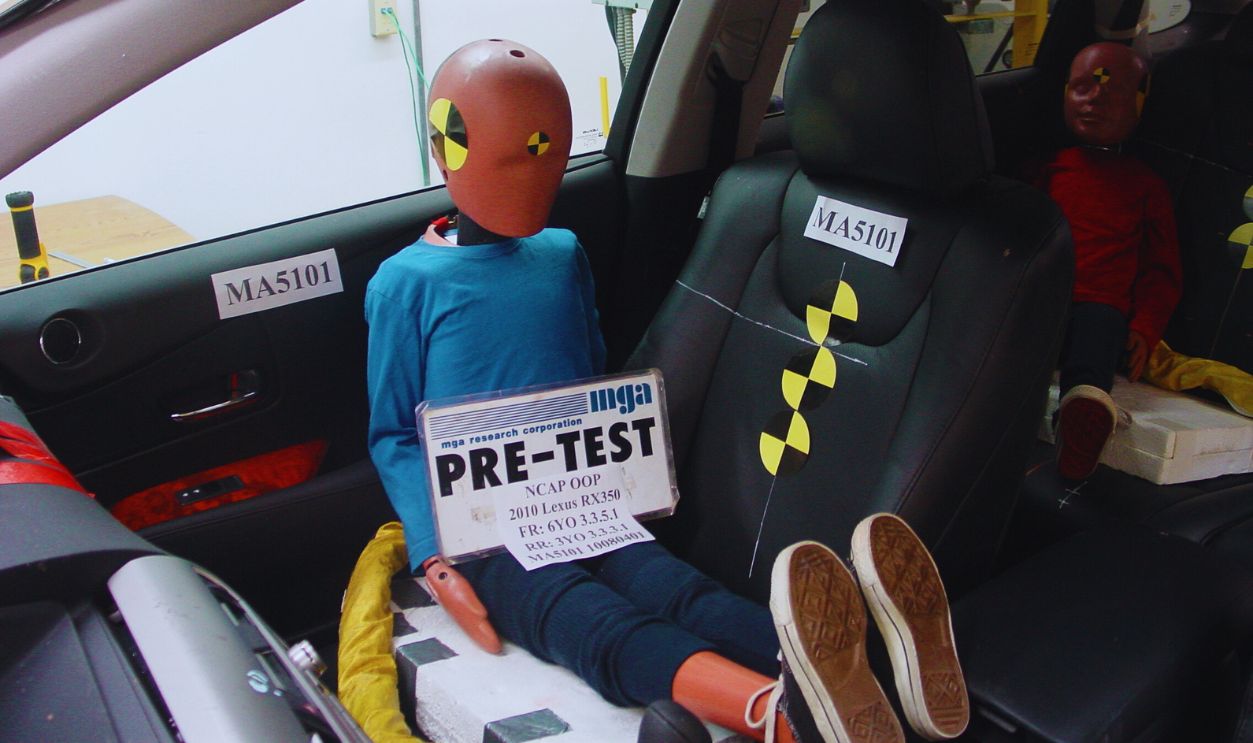

The Hybrid III Legacy
The Hybrid III is still one of the most widely used dummies today. First brought into service in 1976, it simulates a mid-size adult male. Despite newer dummies being available, its reliability and extensive back catalog of crash test data make it an essential tool for vehicle safety assessments.
Nerdi~commonswiki, Wikimedia Commons
Price Tag

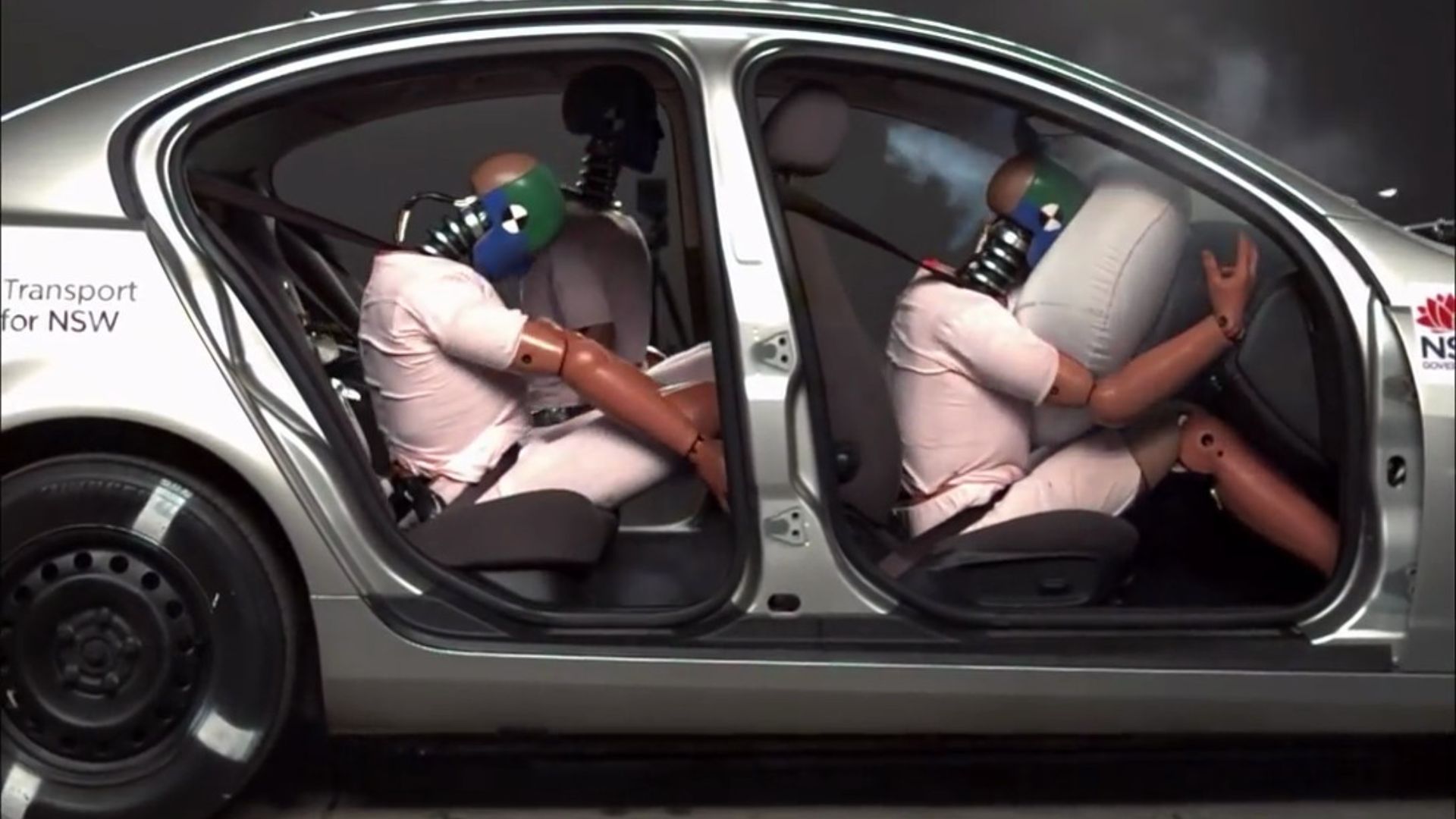

Each crash test dummy can cost between $150,000 and $1 million depending on their complexity. The high price is a reflection of the intricate sensor systems, which measure forces on the head, chest, pelvis, and limbs. Dummies also have to be durable enough to stand up to multiple crash tests while still providing accurate data.
Transport For NSW (https://www.transport.nsw.gov.au/), Wikimedia Commons
Sensors And Technology

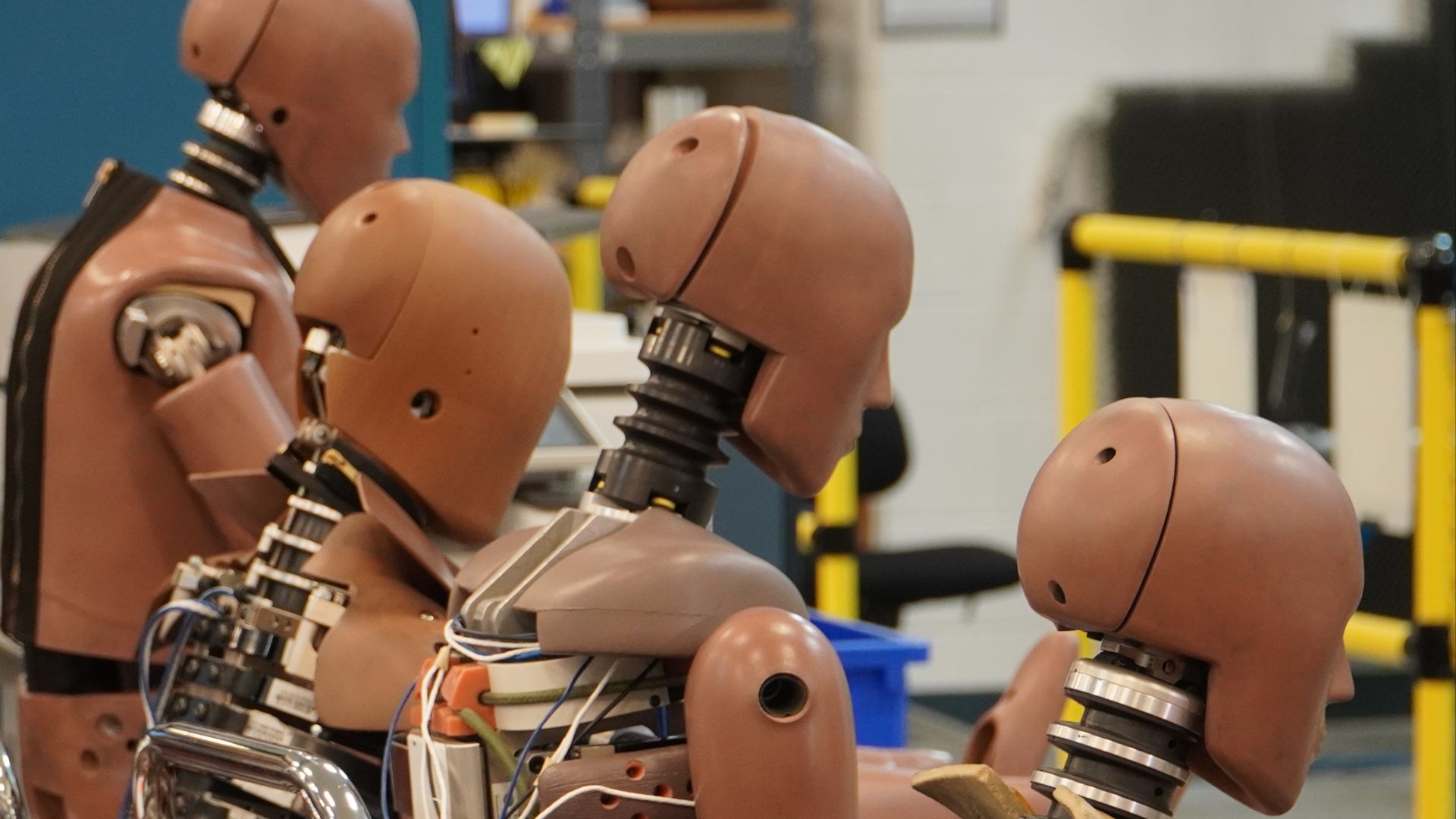

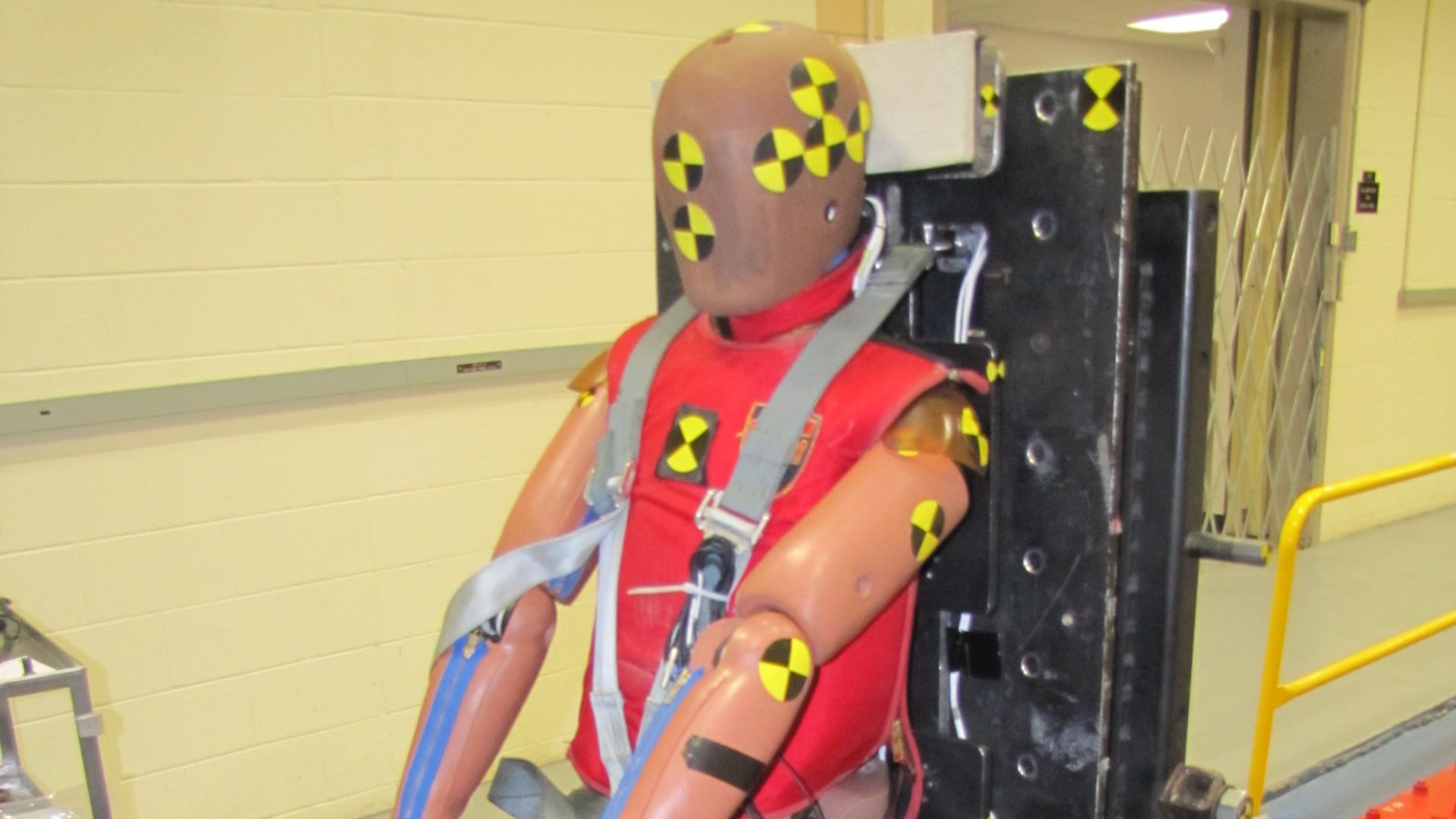

Crash test dummies are what we could more properly call biomechanical computers. They contain accelerometers, load cells, and motion sensors to capture data in millisecond-scale timespans. These sensors give engineers the exact force levels that the human body would go through in a collision, improving safety features such as airbags and seat belts.
Human Crash Safety, Wikimedia Commons
Beyond Cars

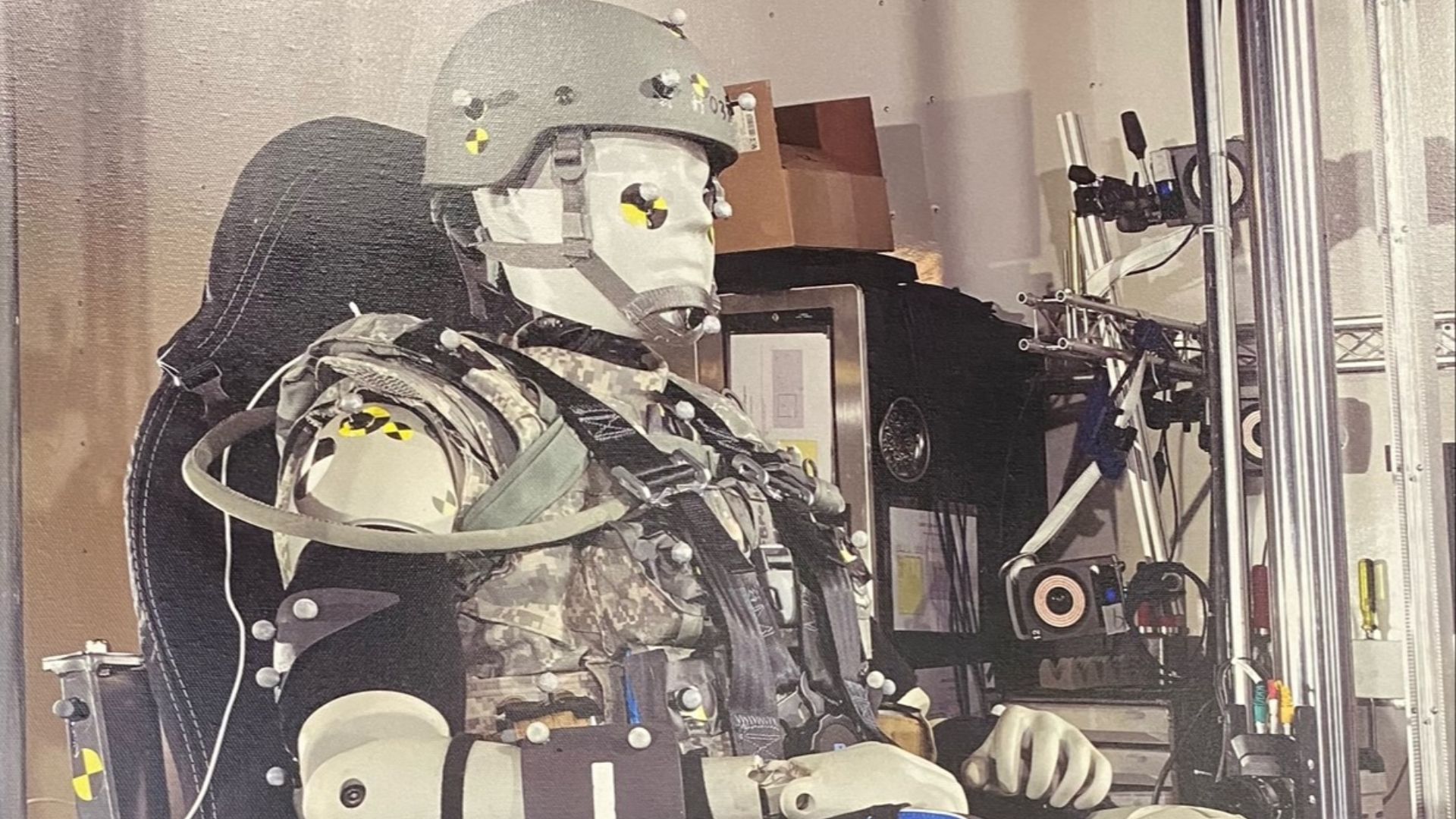

Dummies go far beyond the auto industry. They’re also used in aerospace, military, and sports safety research. For example, specialized dummies help test helmets for athletes and body armor for soldiers. Their multipurpose use has saved lives far beyond the road.
Female Crash Test Dummies
For decades, most dummies simulated only the average adult male. But research shows women are at higher risk of serious injury in crashes. This has been the impetus behind efforts to create female crash test dummies, including smaller-statured models to simulate the differing biomechanics of female bodies.
Human Crash Safety, Wikimedia Commons

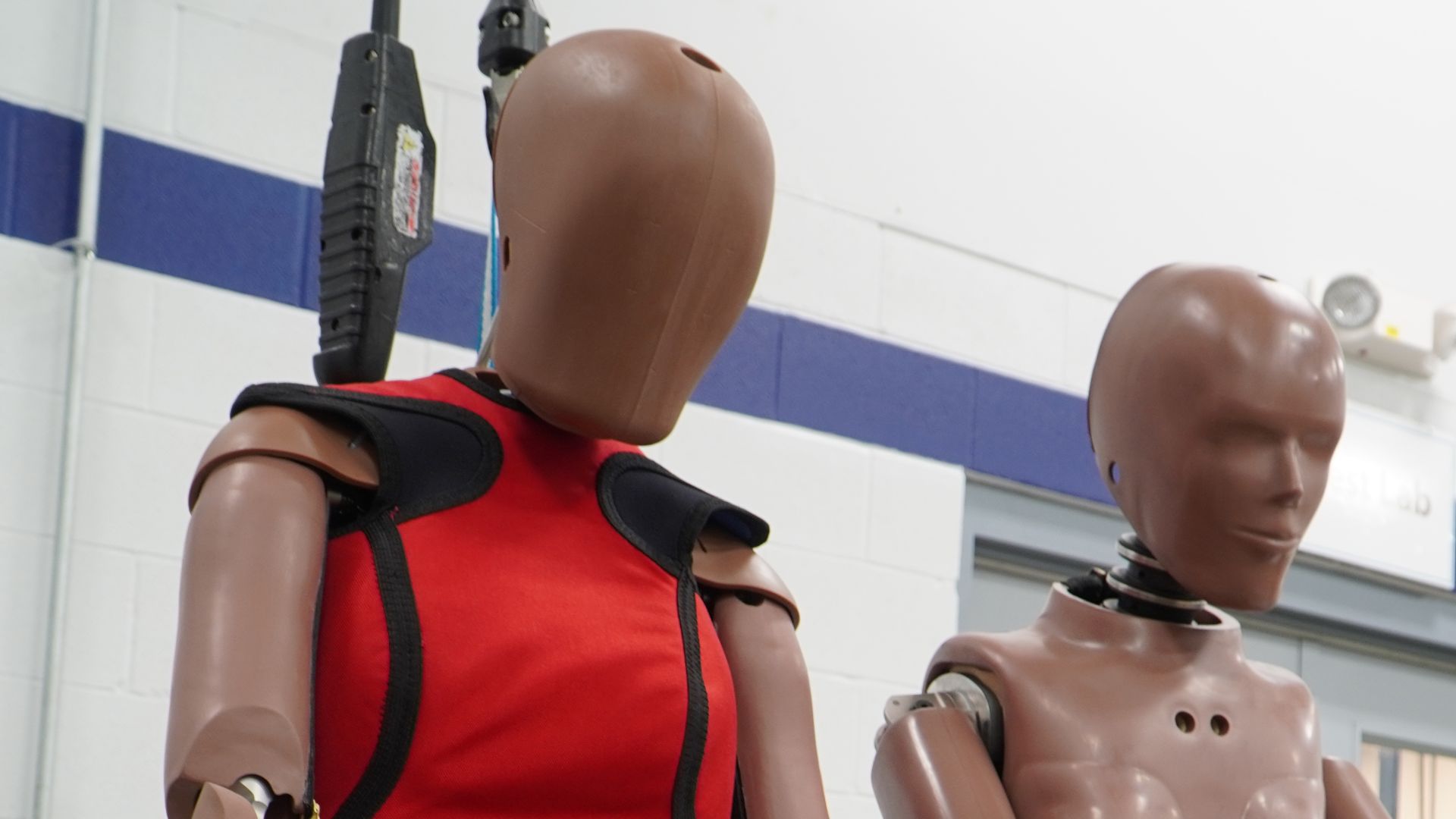

The Five-Foot Crash Dummy
One of the first female crash dummies was designed to represent a 5th percentile woman, and stands about five feet tall with a weight of 110 pounds. But critics note that these models are often tested in passenger seats, not driver’s seats, limiting their ability to completely simulate real-world risks.
Wright-Patterson Air Force Base, NASA, NHTSA, Wikimedia Commons

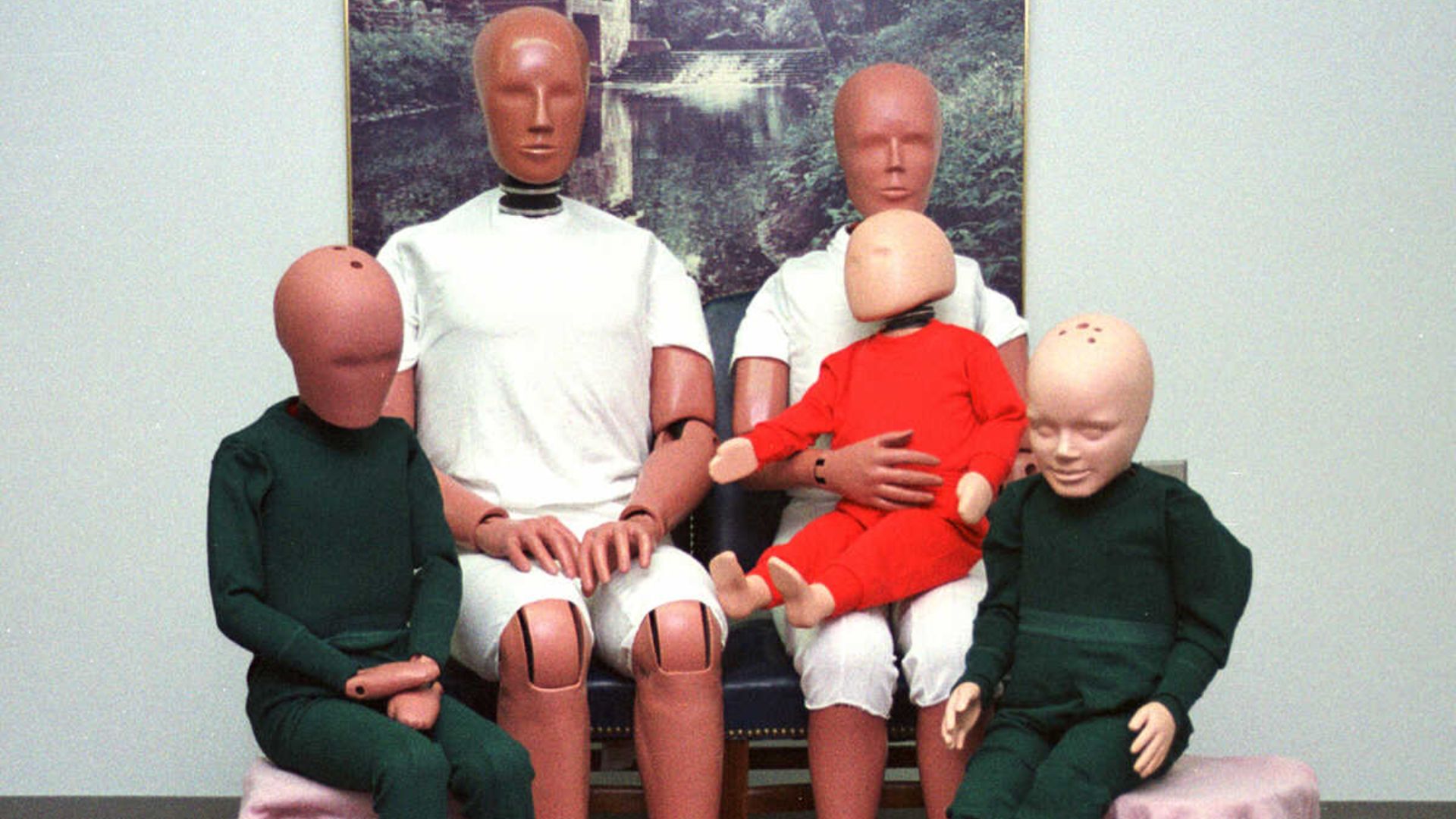

Children And Infant Dummies

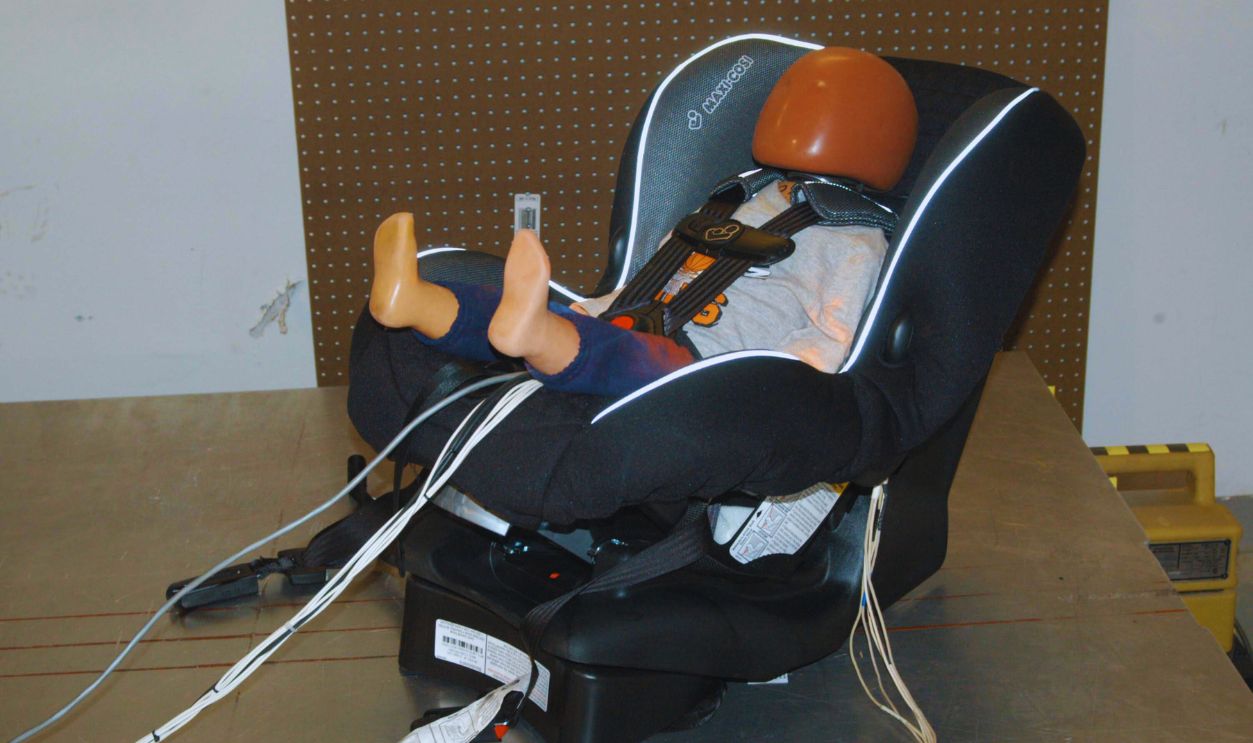

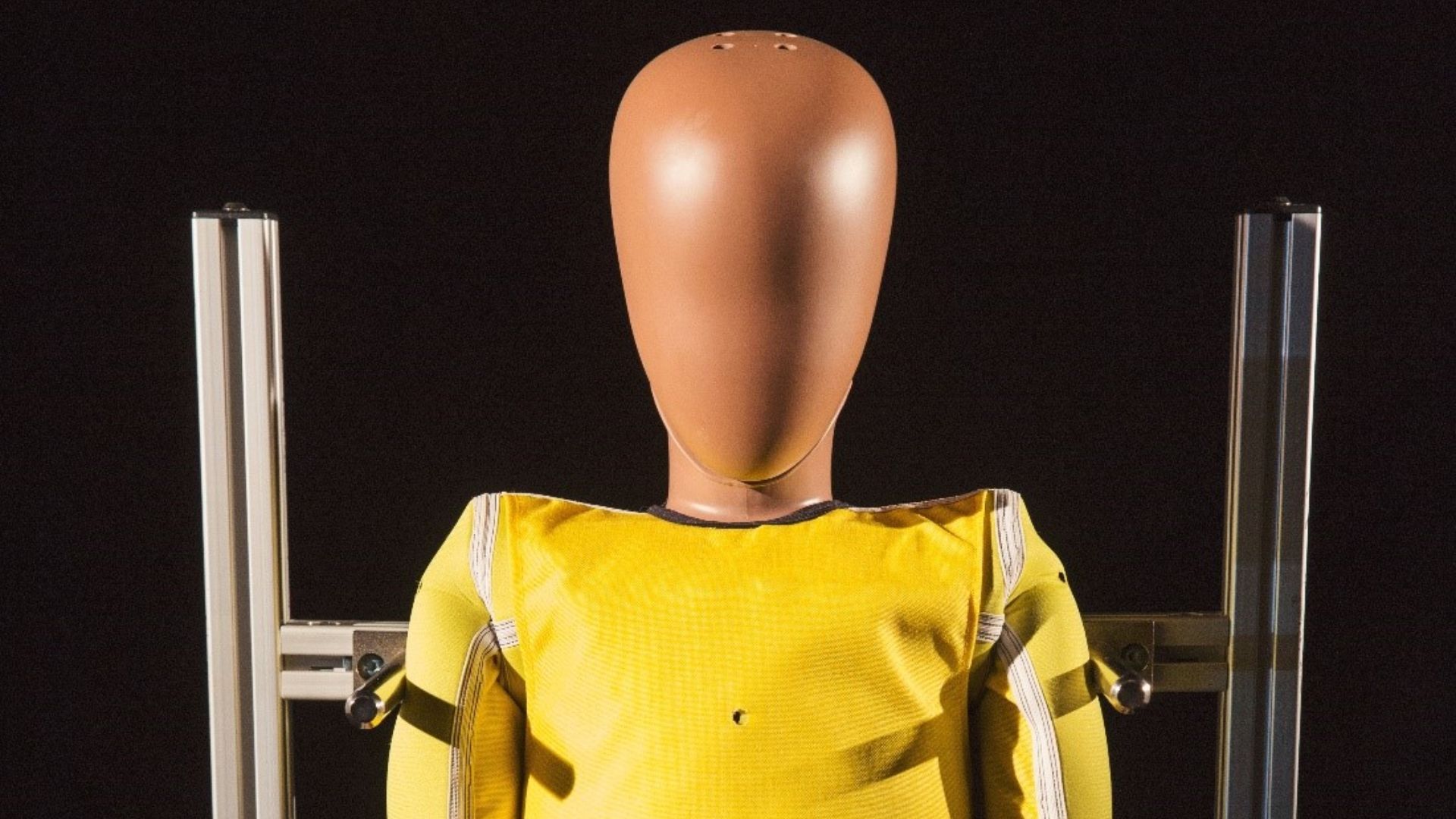

Protecting children requires a more specially-designed dummy. Models exist for infants, toddlers, and older children in order to represent each different stage of physical development. The dummies have led to improved child restraint systems, booster seats, and airbag designs tailored for young passengers.
Medical College of Wisconsin, NHTSA, Wikimedia Commons
Elderly Crash Dummies

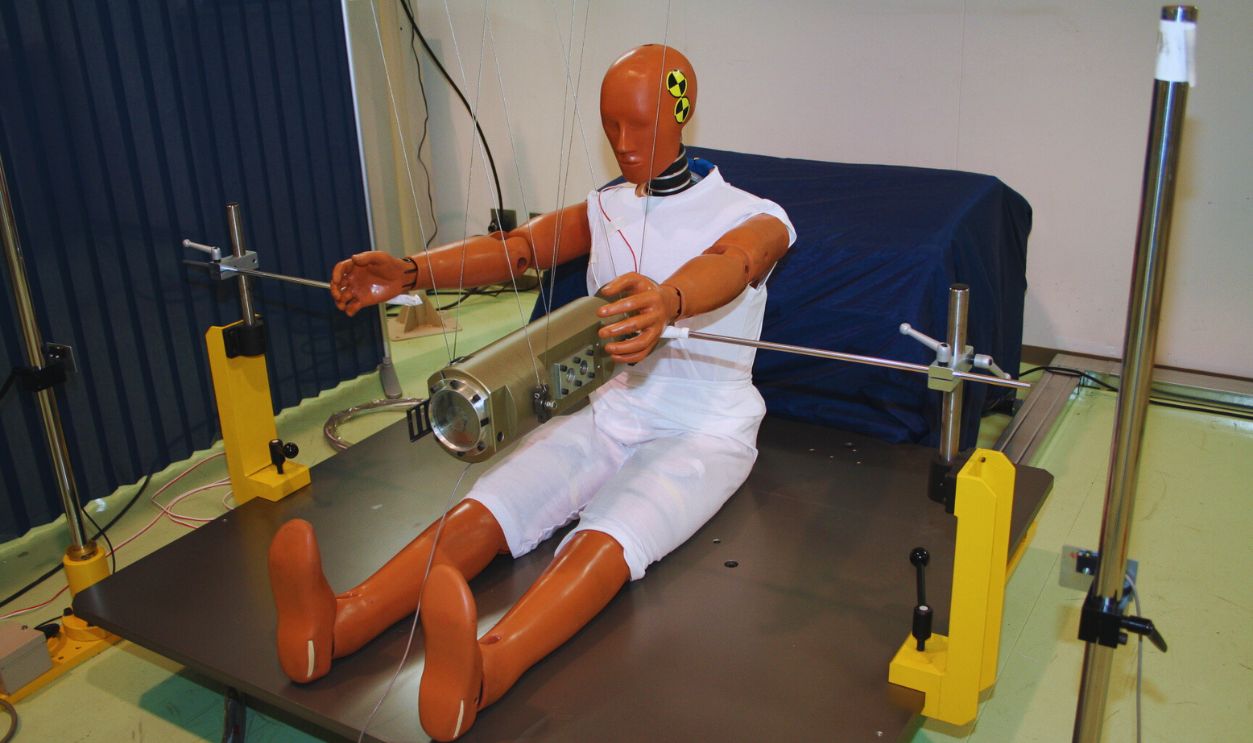

With aging populations worldwide, dummies representing elderly bodies are becoming more and more important. Older people face unique risks due to bone fragility and reduced muscle mass. Testing with elderly dummies has improved vehicle designs for seniors, who are often the ones most vulnerable in crashes.
Japan Auto Research Institute, NHTSA, Wikimedia Commons
Pedestrian Dummies
Modern crash safety extends beyond the vehicle’s occupants to pedestrians. Special dummies can simulate walking or standing people in front of vehicles. These tests help improve pedestrian safety technologies like automatic emergency braking and impact-absorbing hoods.
Motorcyclist Dummies

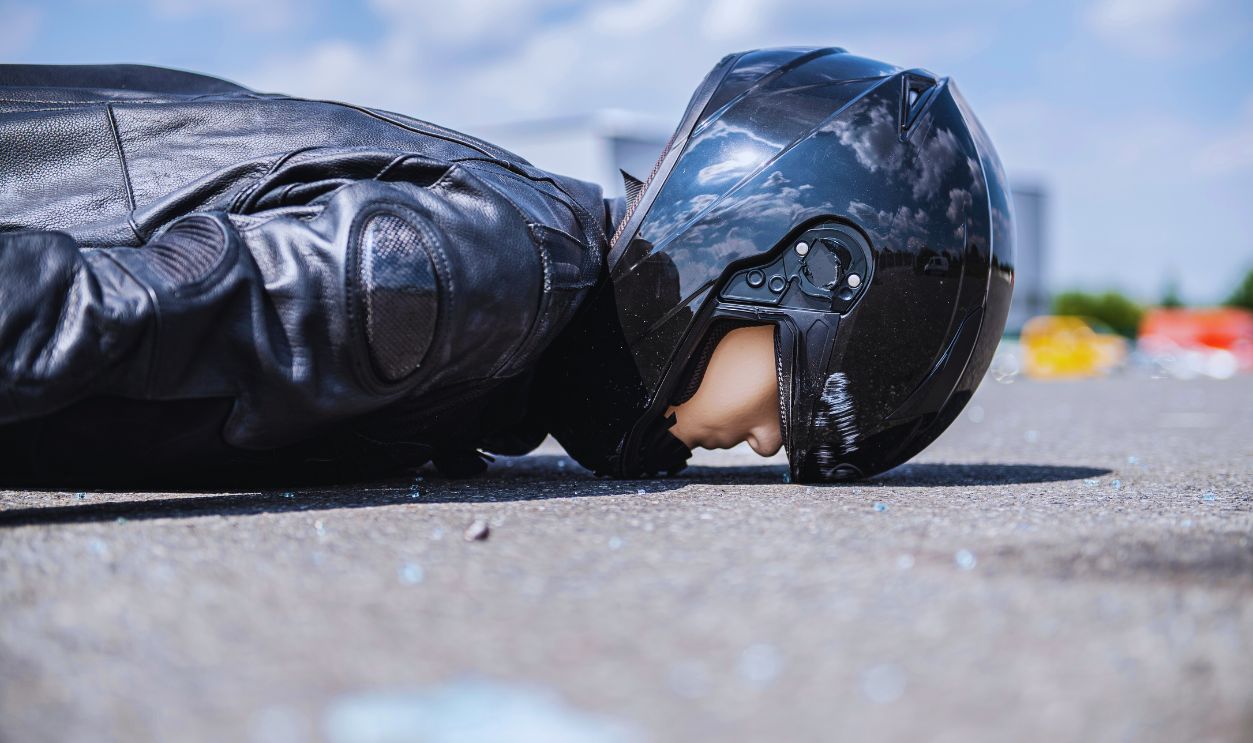

Motorcycle crashes are a whole different challenge. Purpose-built motorcyclist dummies are made to replicate rider posture and impact dynamics. These are amazing tools for studying helmet effectiveness and devising better protective gear for riders.
picture alliance, Getty Images
Unusual Facts About Dummies

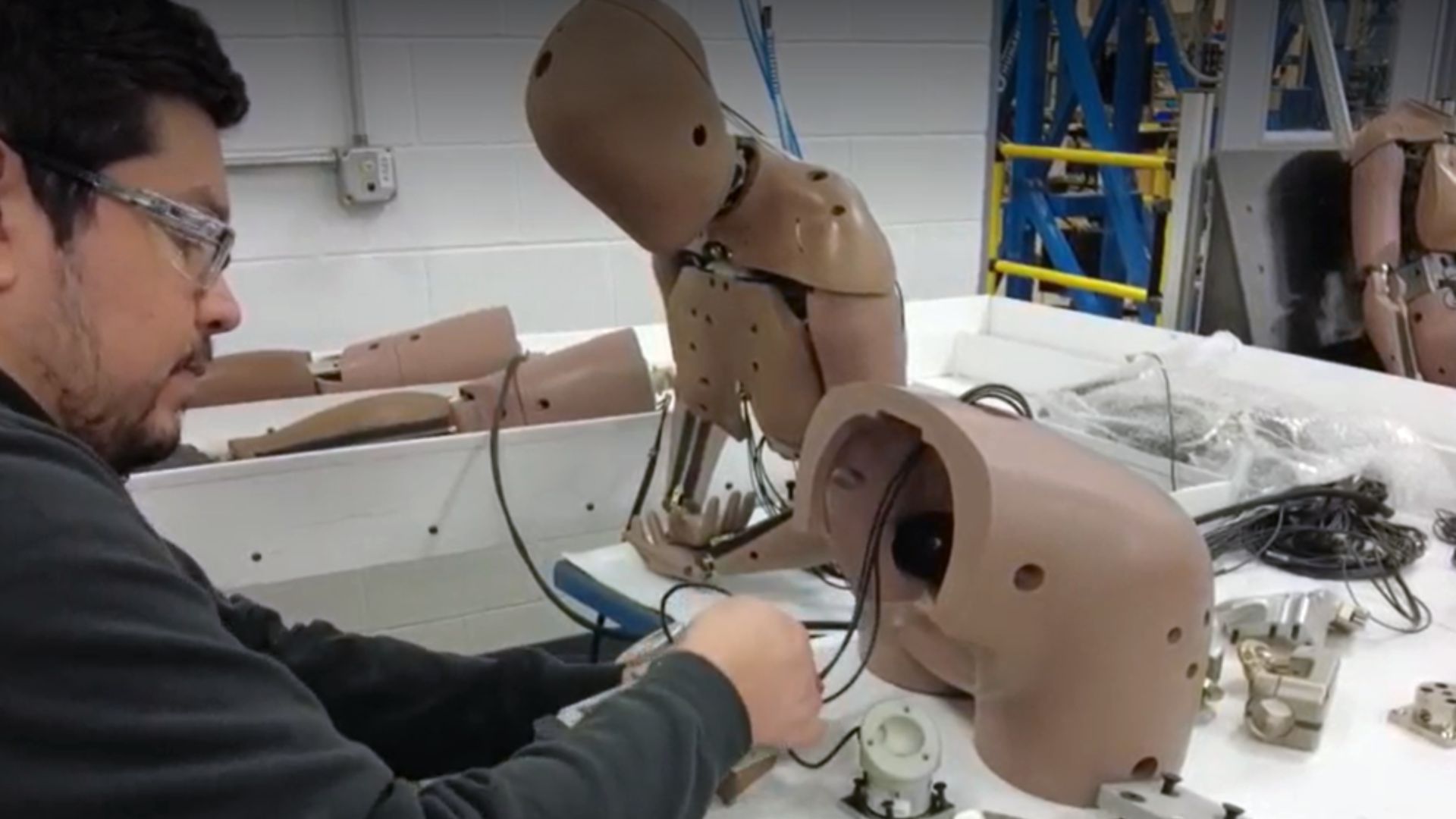

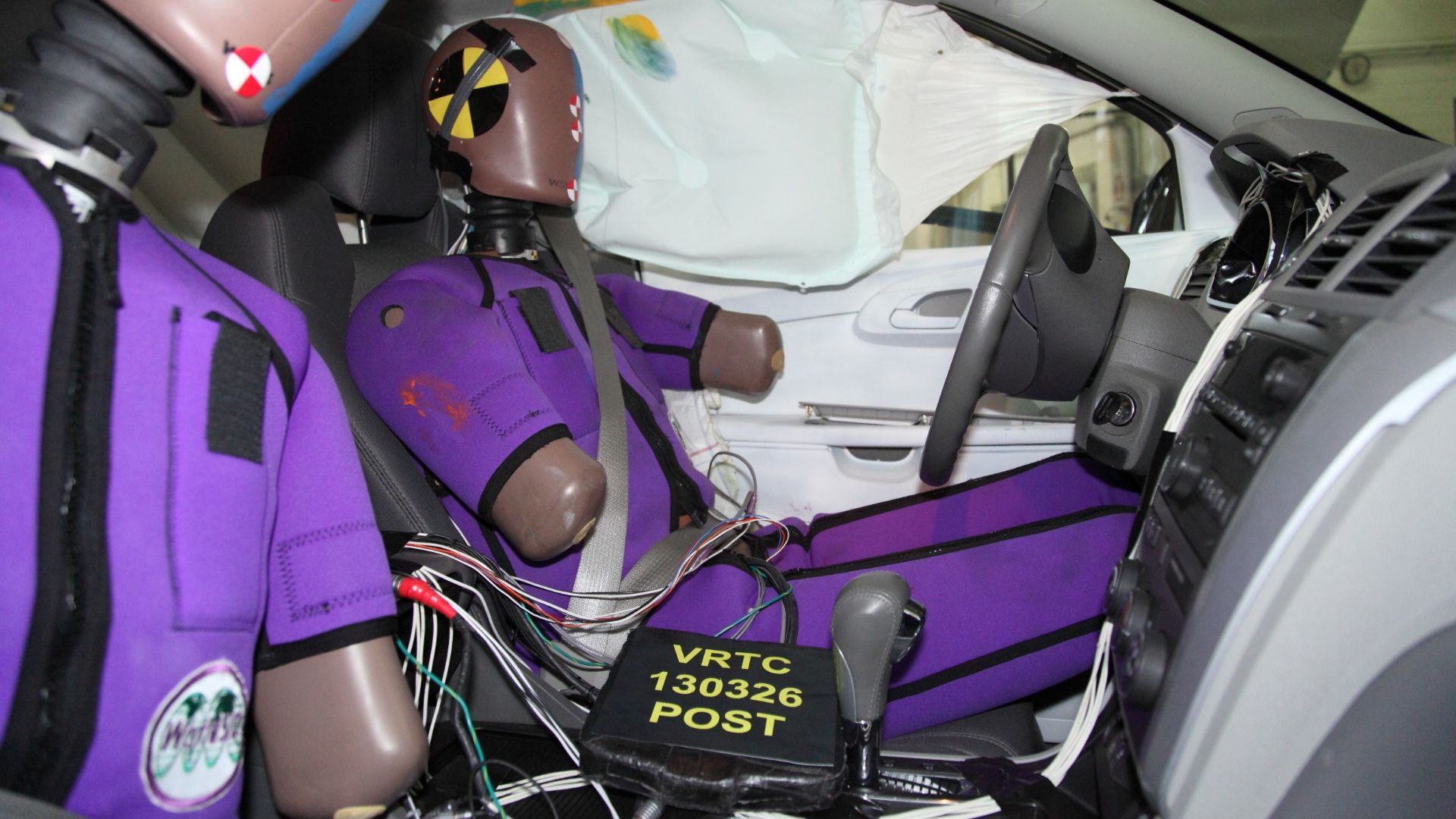

Some dummies carry over 100 sensors, generating enormous amounts of crash data. They have to be very carefully maintained, calibrated, and even repaired after crashes. Dummies are shipped all over the globe for use in international safety programs, making them true world travelers.
Vehicle Research & Testing Center, National Highway Traffic Safety Administration, Wikimedia Commons
The Science Of Biomechanics
Crash test dummies are a fusion of engineering, physics, and biology. They replicate the stiffness of bones, elasticity of muscles, and fragility of ligaments. This realistic simulation is what allows researchers to study the biomechanics of injury with great insight, turning raw crash data into safety insights that we can use to make needed improvements.
Calspan Corporation, National Highway Traffic Safety Administration, Wikimedia Commons
THOR: A Breakthrough In Dummy Design
The development of THOR (Test device for Human Occupant Restraint) stands as the next generation of dummies. With advanced sensors and improved human-like anatomy, THOR can replicate more detailed injury outcomes, offering a more complete picture of crash survivability.
Digital Crash Testing

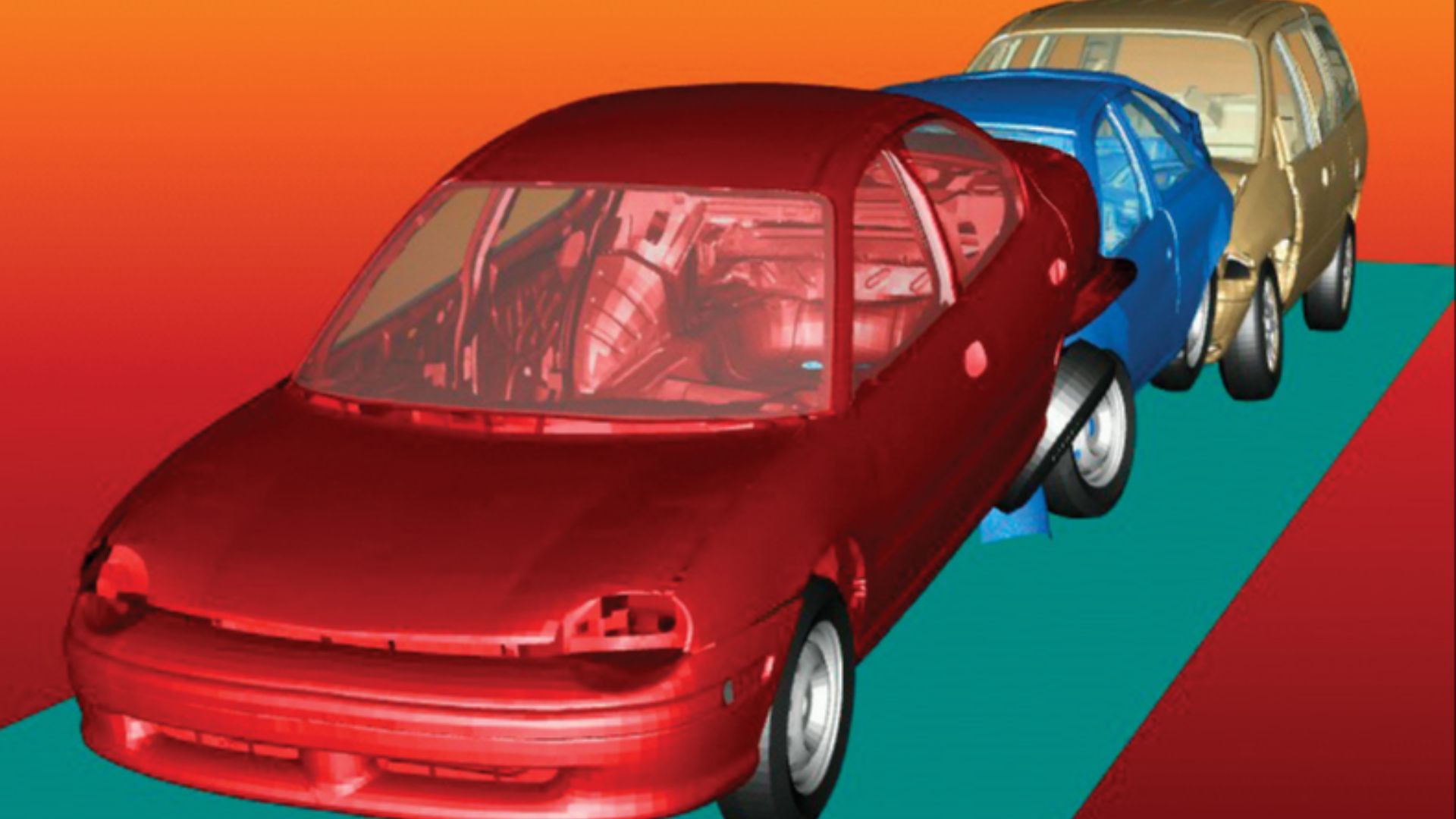

Virtual crash testing uses the latest computer models to assist the work done with physical dummies. Programs like Human Body Models simulate real human tissues in digital space. These digital programs reduce costs and allow more tests, while the physical dummies can be reserved to validate the digital results.
Matt Howard, Wikimedia Commons
Why Dummies Are Still Indispensable
Despite advances in computer modeling, physical dummies are still crucial. They give us irrefutable real-world data that simulations can never quite capture. Combining physical testing with digital models is an unbeatable combination for designing vehicles that meet the highest safety standards.
World Safety Standards

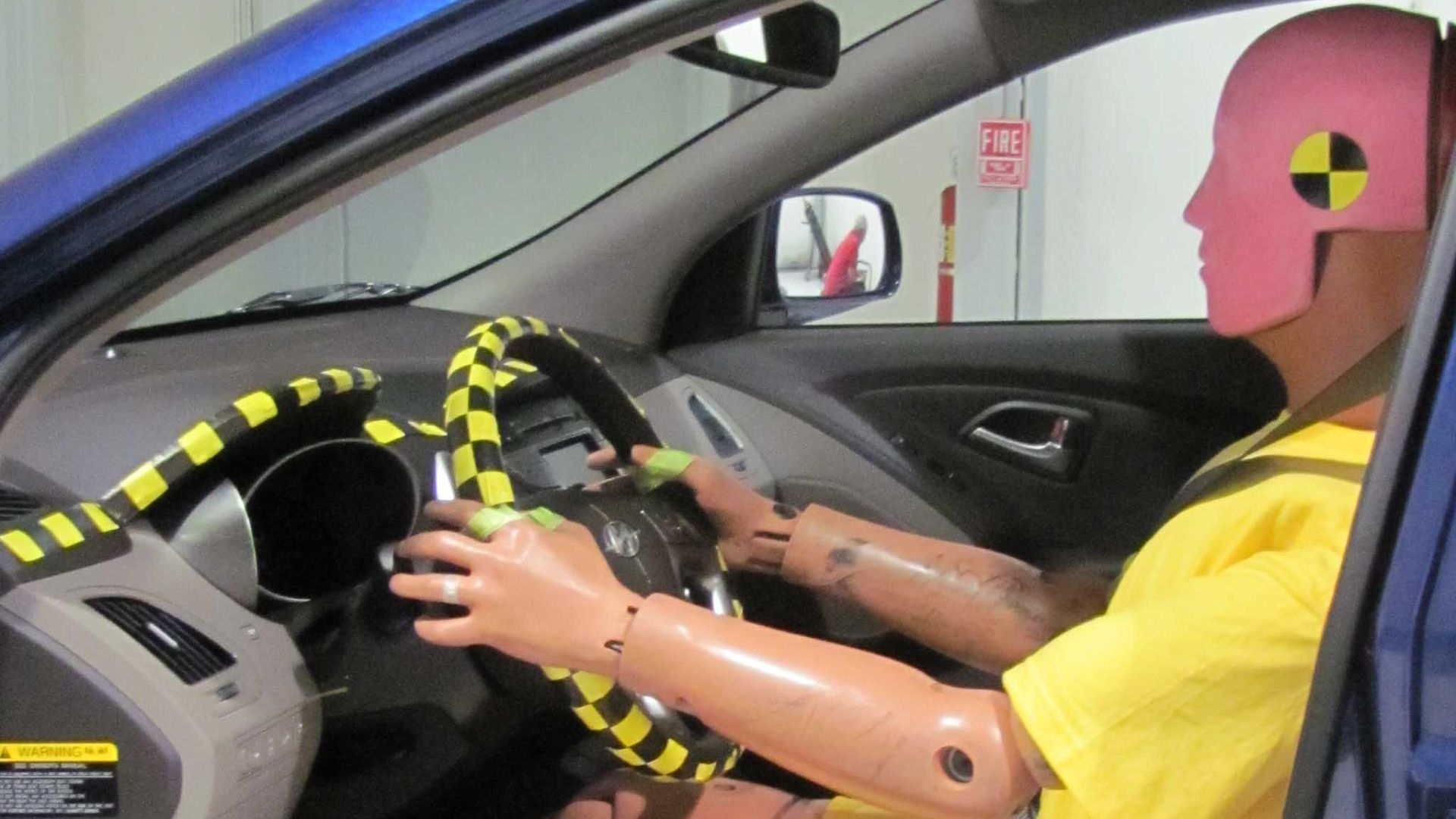

Crash test dummies are pivotal to global safety regulations. Organizations like NHTSA, IIHS, and Euro NCAP all rely heavily on dummies for their safety ratings. These results impact consumer choices, pushing automakers to put crashworthiness at the top of the list of design priorities for every new model.
Human Crash Safety, Wikimedia Commons

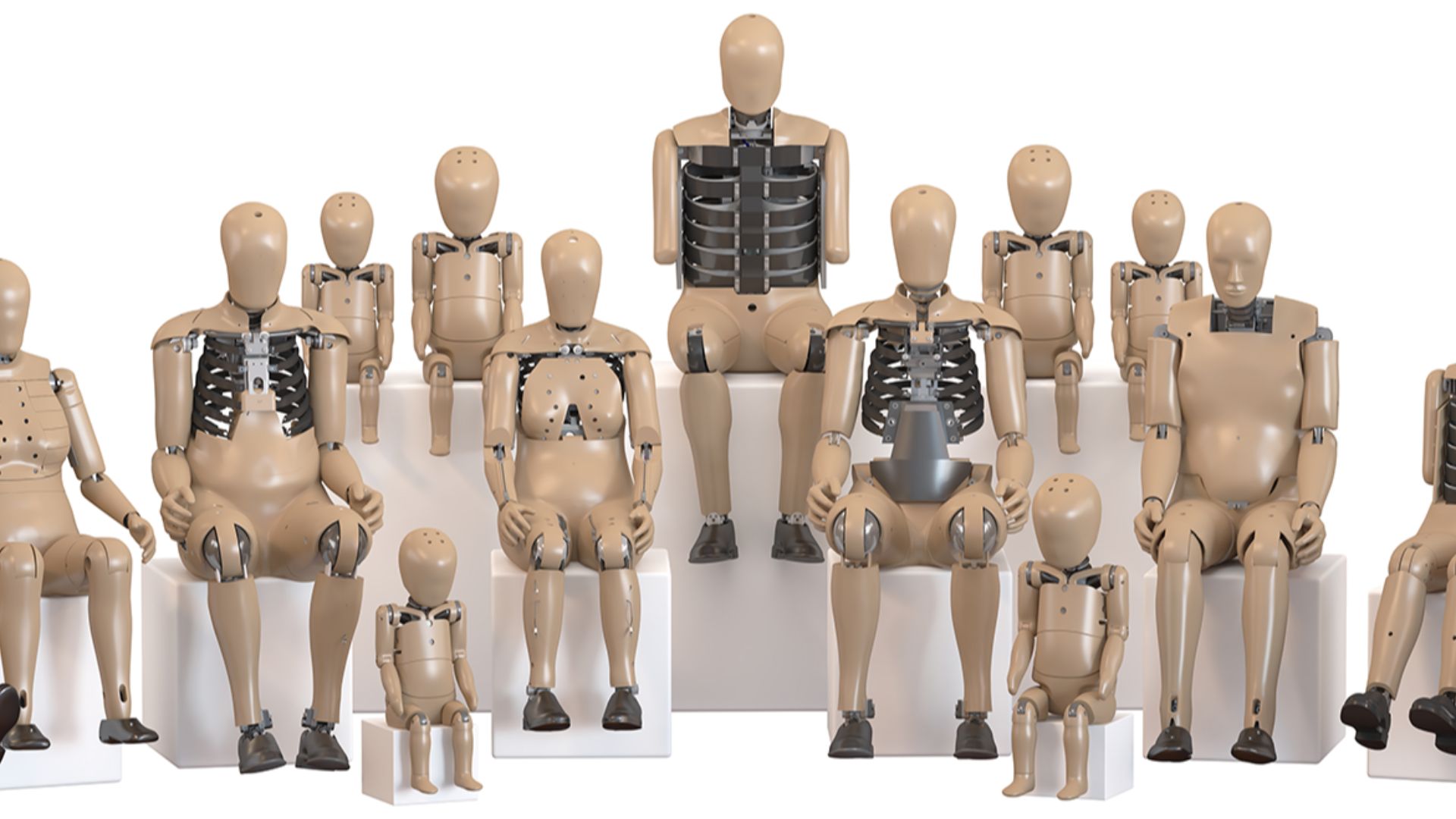

Inclusive Dummy Technology
The future of crash test dummies is in inclusivity. Models representing women, children, elderly, and diverse body types will make cars safer for everyone. As the existing body of knowledge grows, pressure mounts on regulators to ensure testing reflects the various body types of real-world drivers and passengers.
Human Crash Safety, Wikimedia Commons
Unsung Heroes
Crash test dummies are unsung heroes of vehicle safety. From Sierra Sam to modern THOR, these tools continue to save lives every day by making vehicles safer for us all.
National Institute of Standards and Technology, Wikimedia Commons
